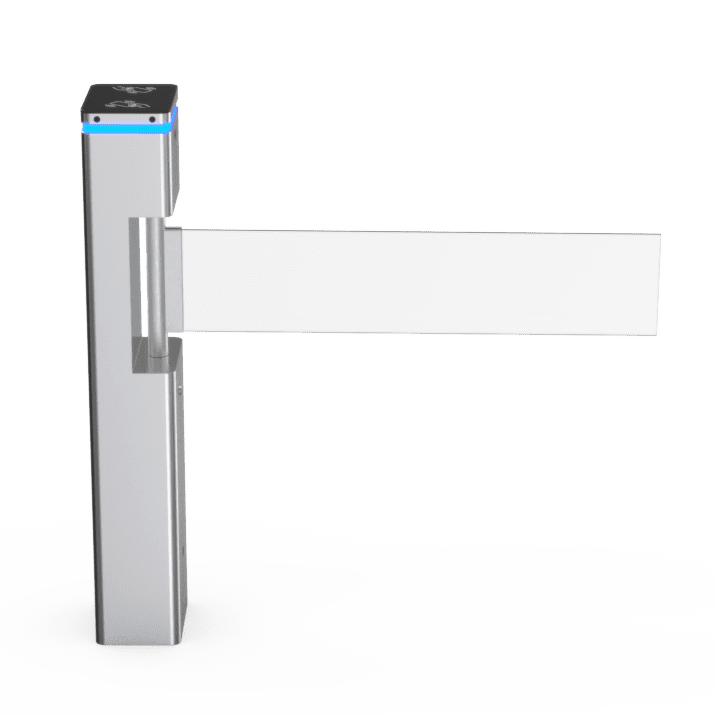

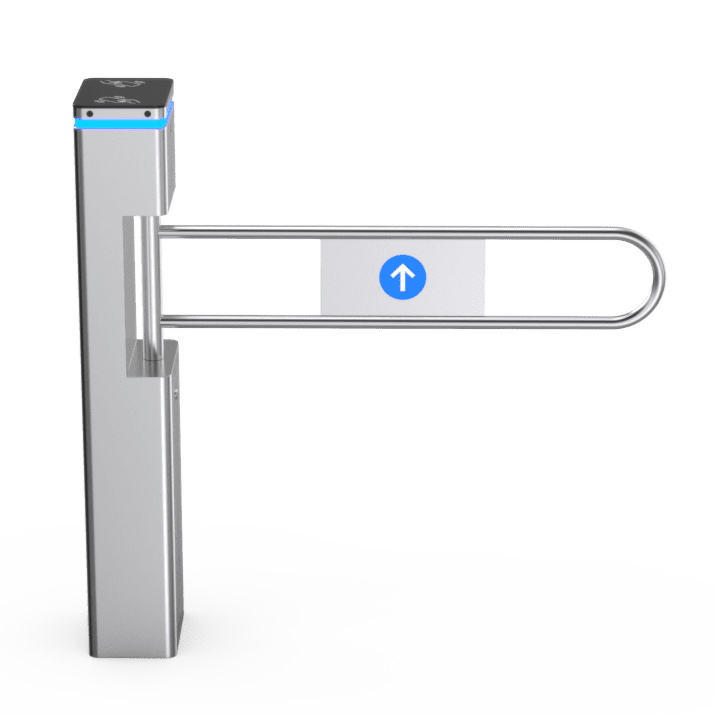

Nebula Swing Turnstile DS225

DS225 nebula swing turnstile, exquisite and beauty is the most attractive feature in the first look.
The cabinet with 230 width which is flexible to install any type of RFID card reader directly in the gate itself.

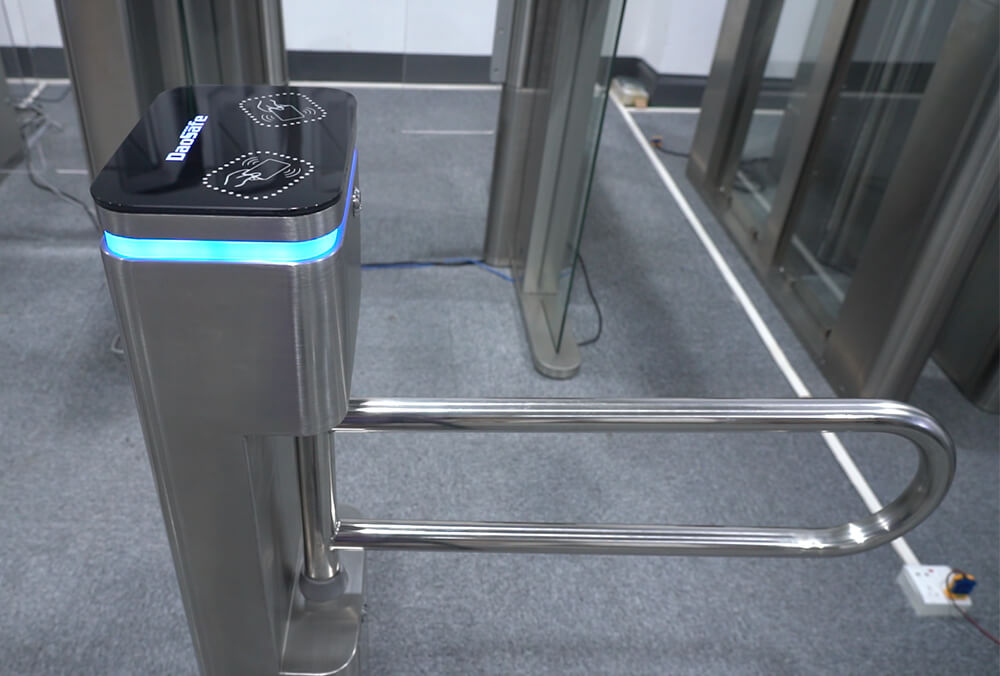

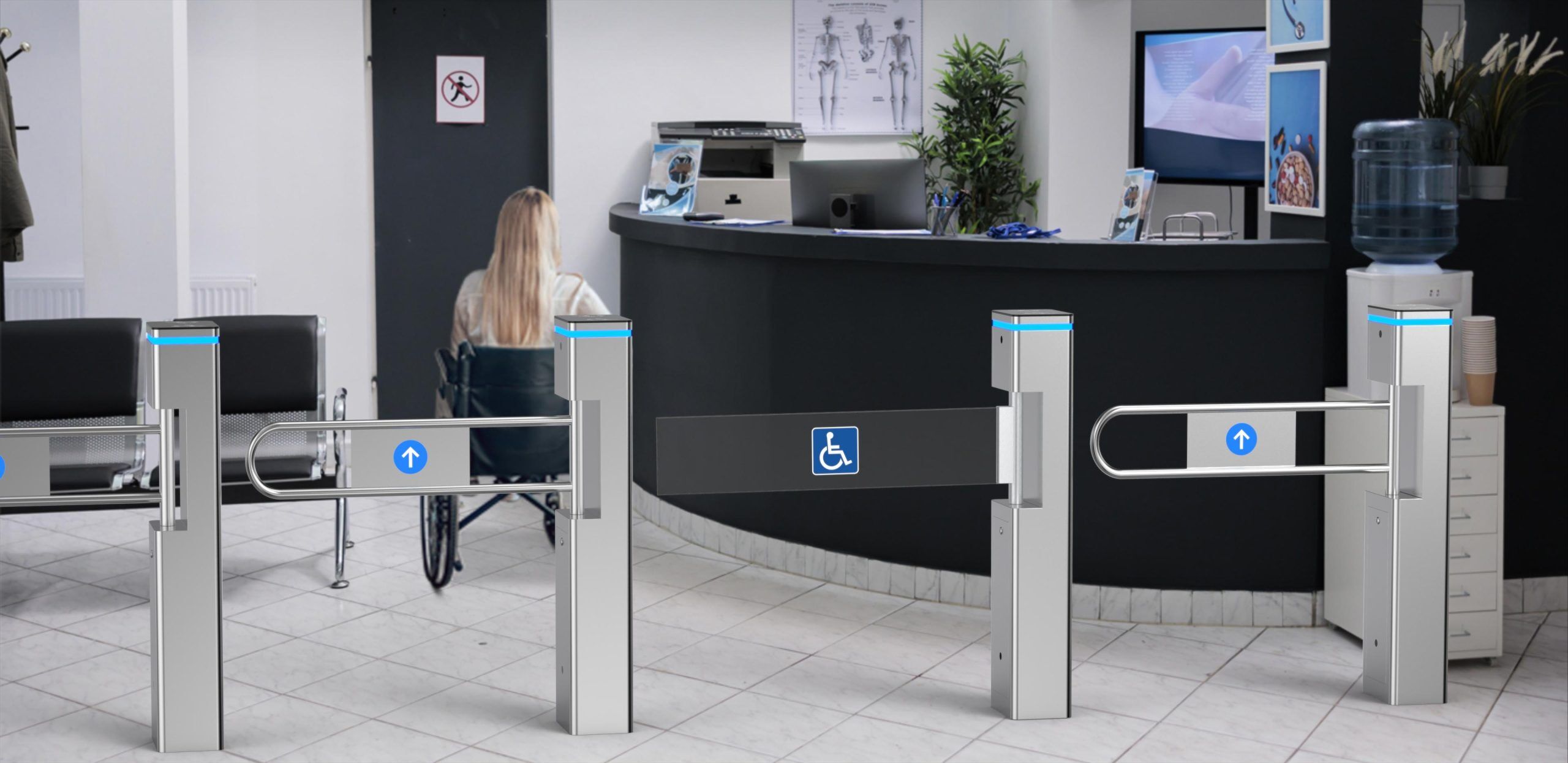

One pcs can support 900mm arm for wide passageway, wheelchair, and pedestrian with large luggage can also pass.

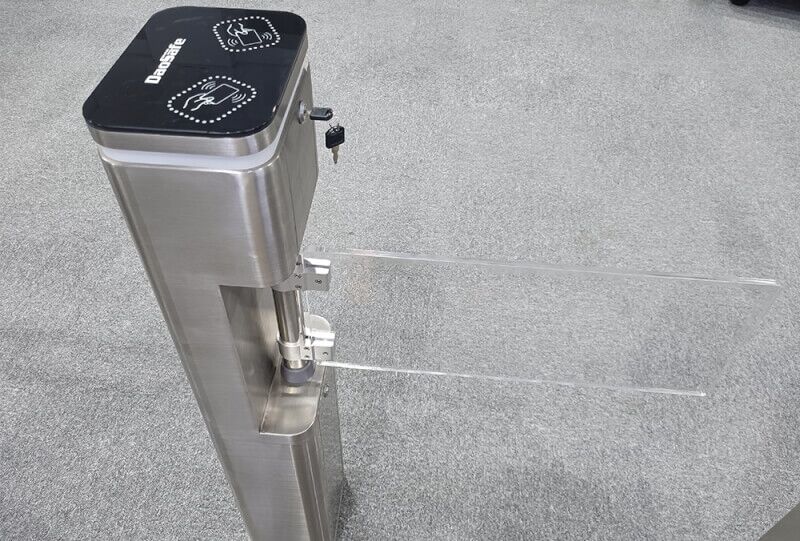

Hidden cover opening design, no "key & lock", making the product appearance integrated and more aesthetic.

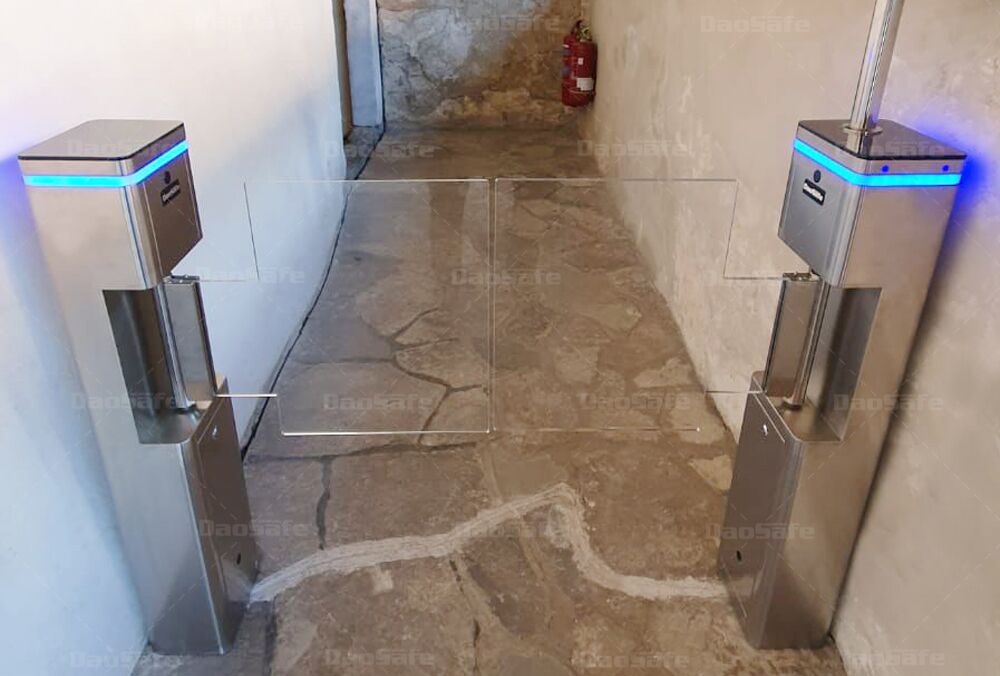

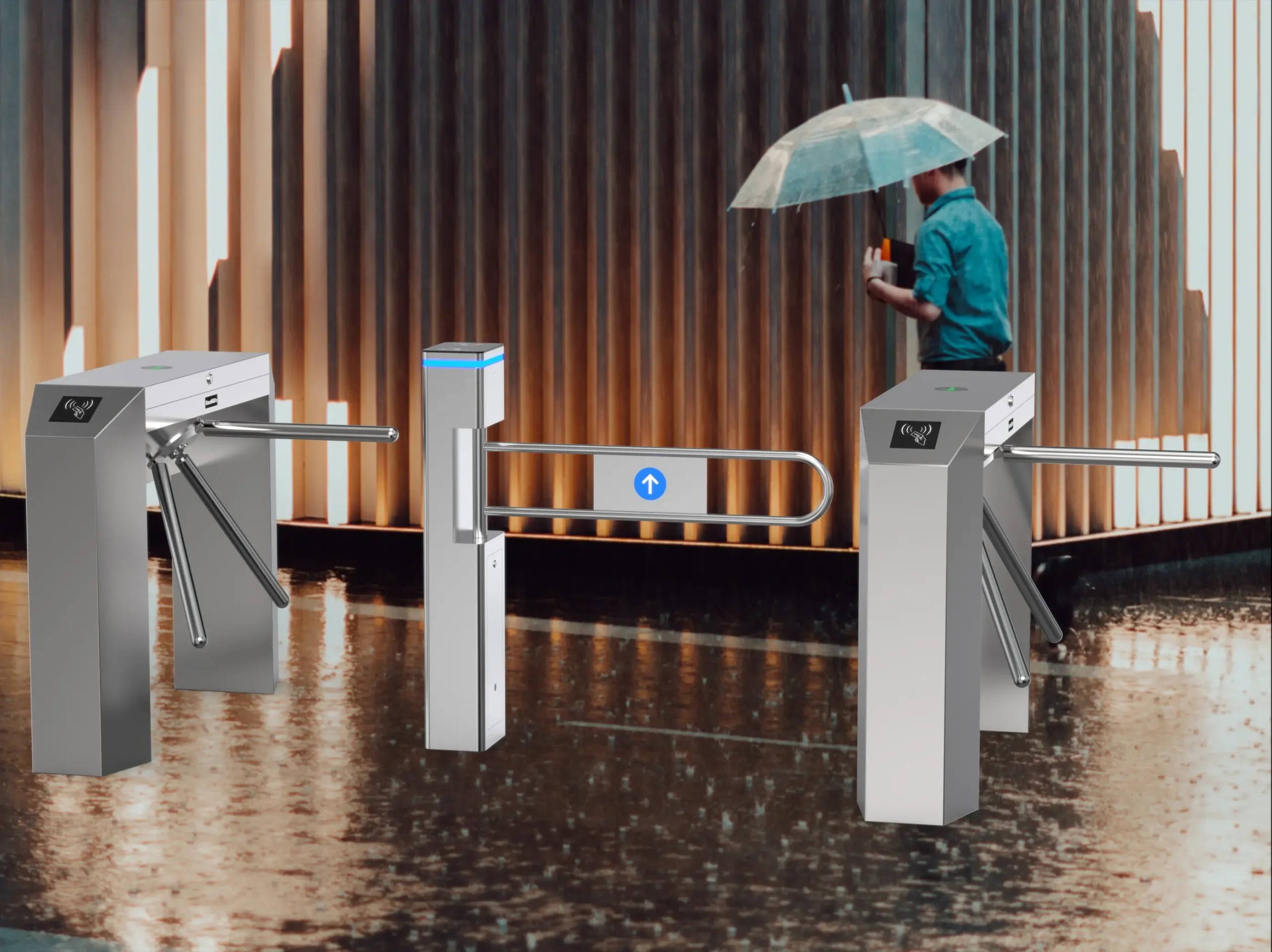

It is ideal for both indoor and outdoor settings, waterproof design.

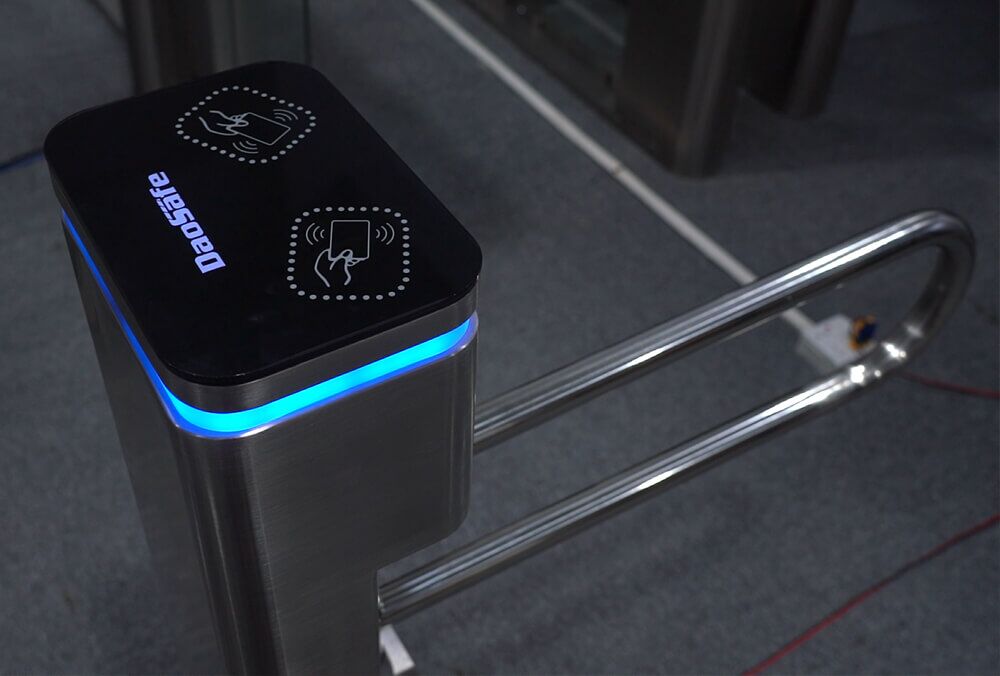

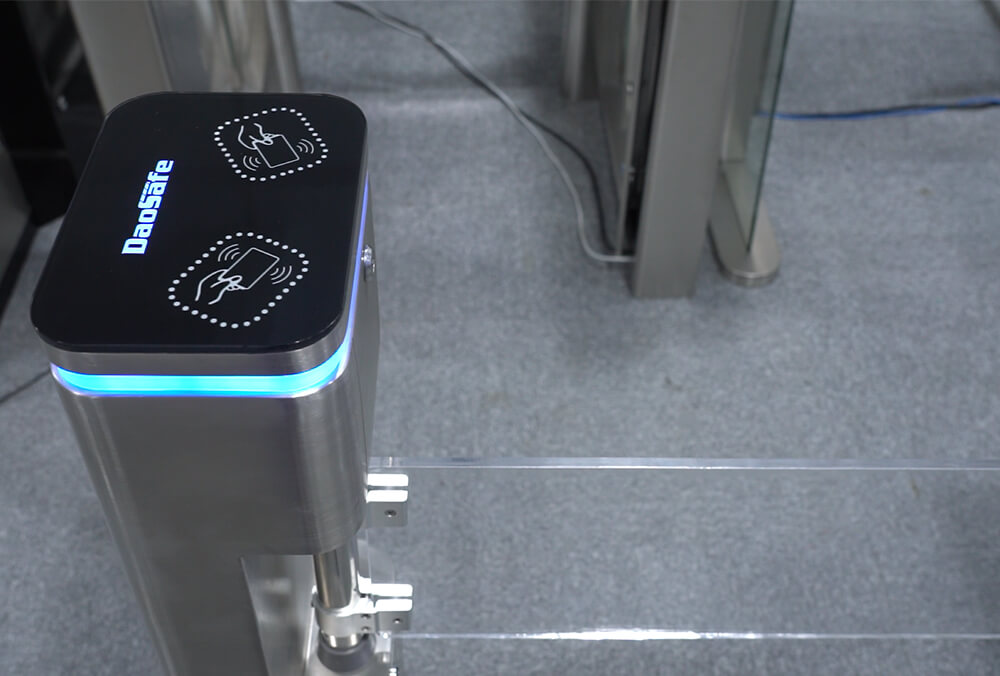

At the top, it’s covered by a high black tempered glass, show up an attractive and impressive character.

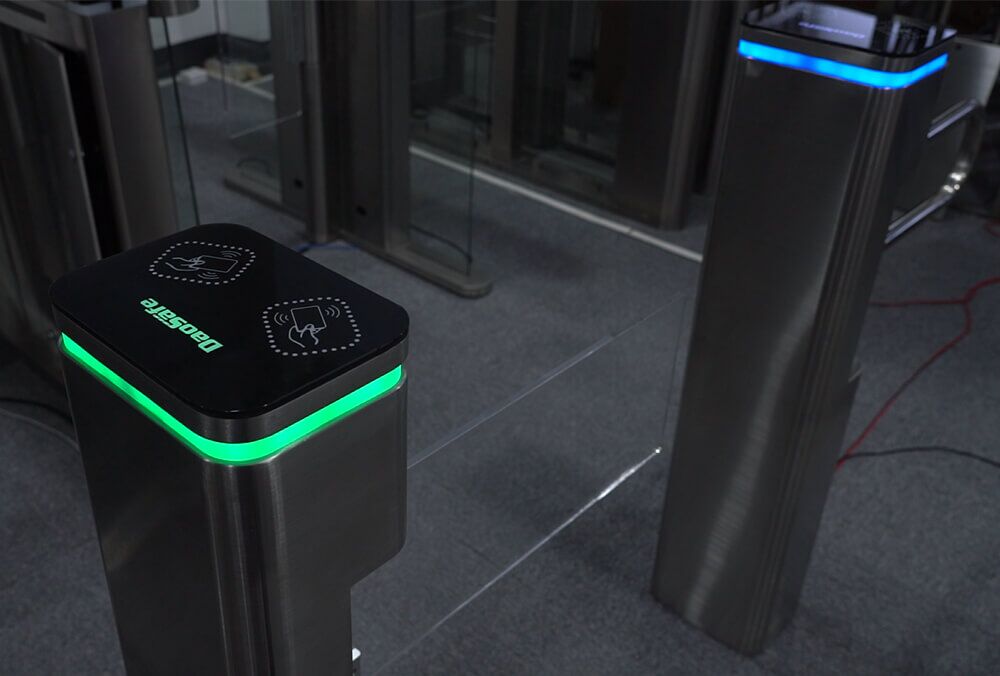

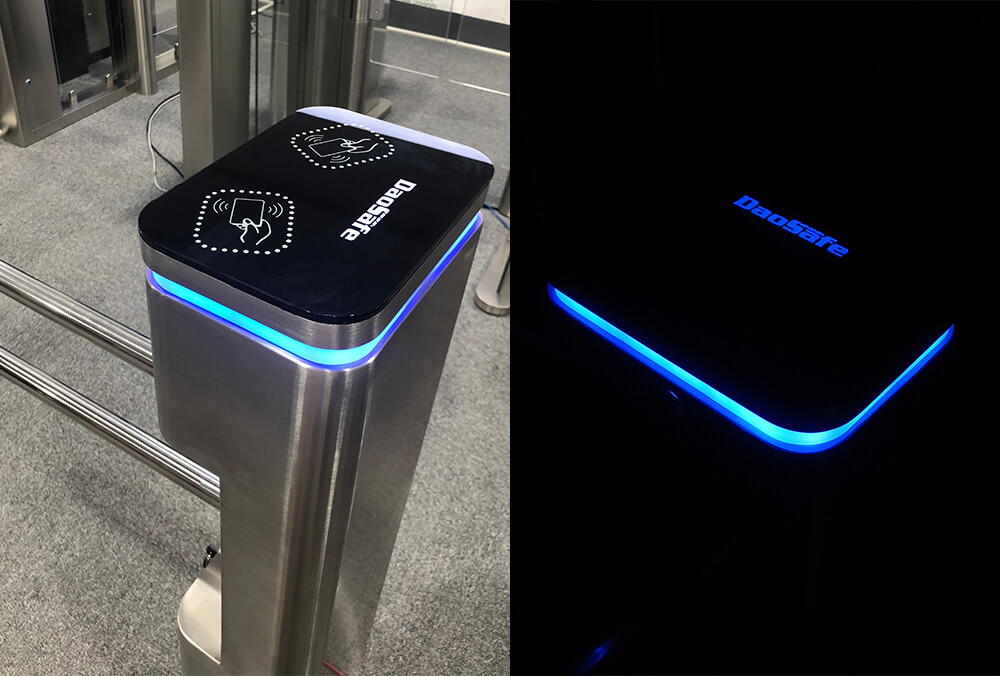

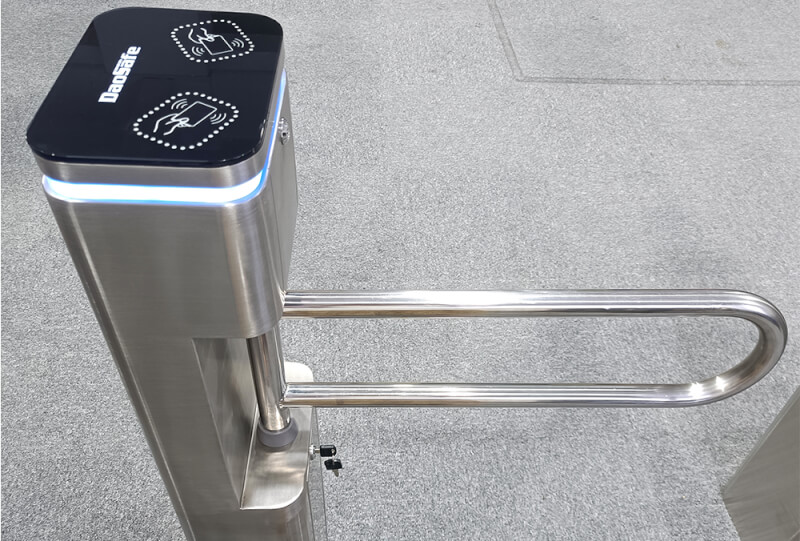

The full stainless-steel body is surrounded with dazzling decorative LED light bar which bring out an aesthetic and distinctive sense.

Features of Nebula Swing Turnstile

The whole system runs smoothly, long-life performance, high operation dependability and fast response
Alarm function, in case of illegal intrusion and reverse intrusion (optional)
Infrared sensor to prevent pinch pedestrians (optional)
Anti-breakthrough function. The gate is locked automatically until opening signal received
Anti-trailing function, the turnstile will lock if someone wants to burst in without swiping the RFID card (optional)
Automatic reset function. If the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically
When power is off, optical turnstile will open automatically, which is complying with fire safety requirements
Superior production: Combine mold production to ensure the high quality guaranteed
Welding: adopt robot for weld to improve the high technological level
Easy to install and maintain
3-year warranty support

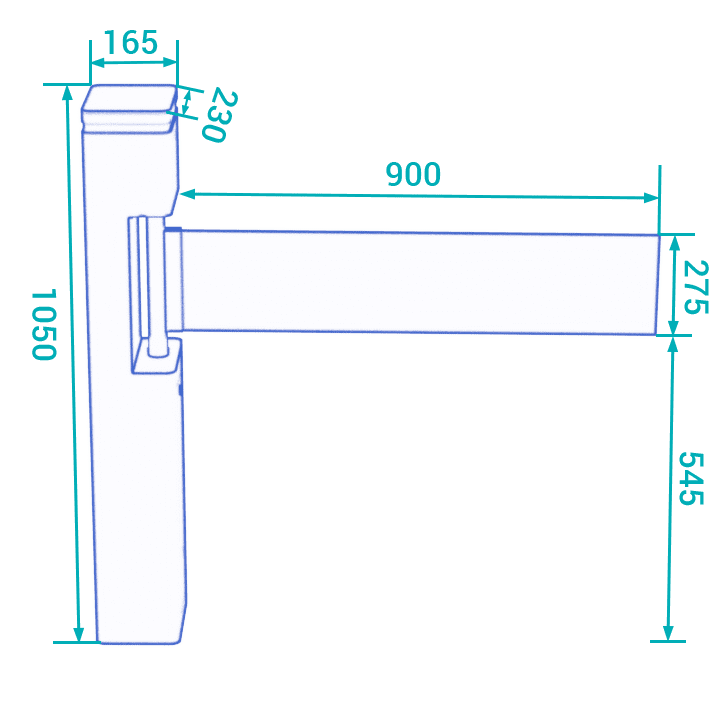

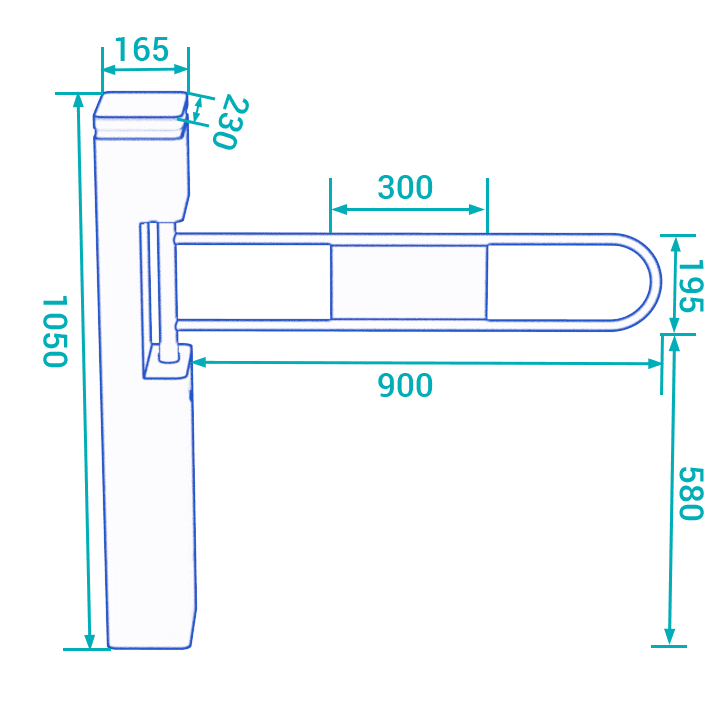

Product Details and Dimensions

All the details and dimensions can be customized according to your project site

Product Parameters

Model No.	DS225
Brand	Daosafe
Framework Material	304 brushed stainless steel+ high end black tempered film glass
Arm Material	Plexiglass / Stainless Steel
Dimension	230 * 165 * 1050mm
Weight	25kg/pcs
Passage Width	≤900mm (One passage)
Passing Direction	Single directional / Bi-directional
MCBF	10 million
Power Supply	AC220V/110V, 50/60Hz
Operation Voltage	24V DC
Power Consumption	40W
Operation Temperature	-20 °C - 75 °C
Operation Humidity	0 ~ 95% (No freeze)
Working Environment	Indoor / Outdoor
Flow Rate	40 people per minute
LED Indicator	Yes
Infrared Sensor	2 pairs (optional) up or down
Emergency	Automatic arm open when power off
Communication	Dry contact, Relay signal, RS485

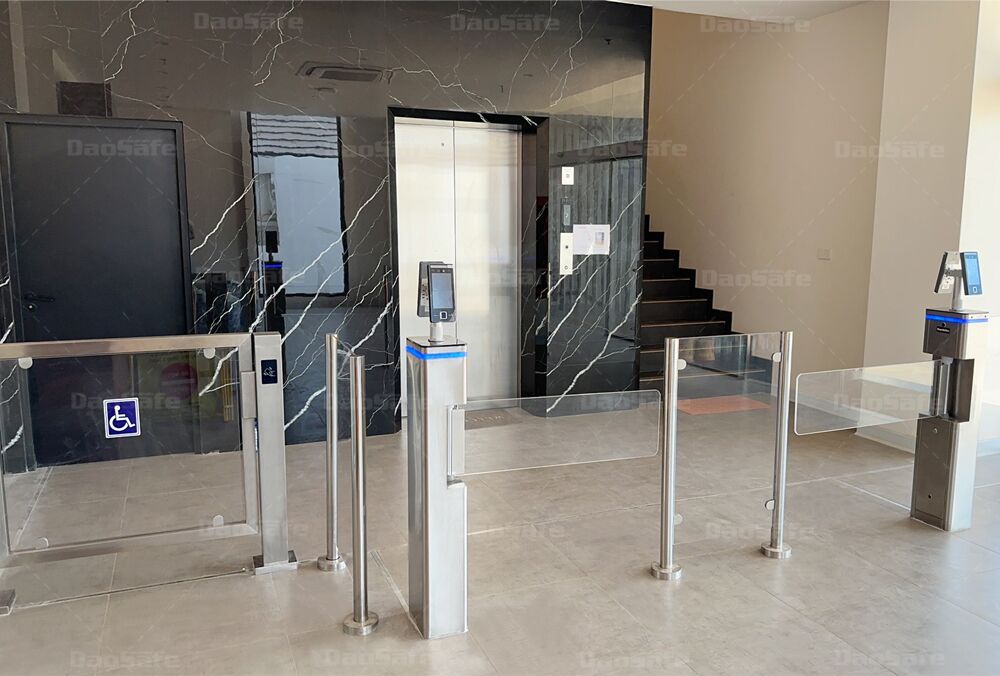

We Provide Multiple Solutions

Model DS225 is the simple type of nebula series turnstiles, one pcs can support 900mm arm for wide passageway, wheelchair, and pedestrian with large luggage can also pass. DS225 Nebula Swing Turnstile with IP65 level, waterproof, no afraid of water or rain. Which is provides an artistic and high artwork solution for access control solution.
