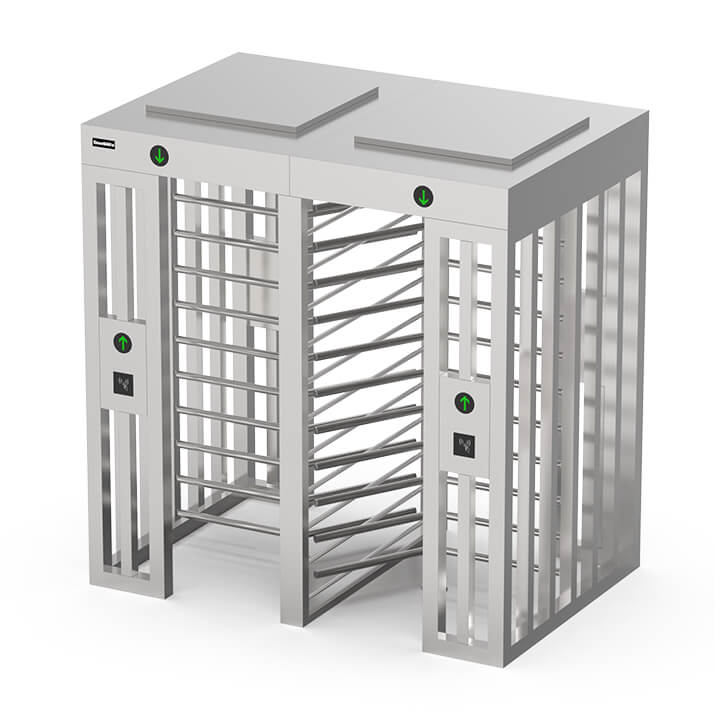

Full Height Turnstile DS402FS

Full height turnstile DS402FS is designed to provide entry access control solutions in outdoor places or places that need high security, such as prison, stadium and construction site.
Solid rain protection roof to resist bad weather and intrusions, with 304 or 316 stainless steel optional. The standard dimension is 2.2m (L) X1.5m (W), which can be customized.
It’s ideal for both indoor and outdoor, as whole body is made of finished and brushed stainless steel, which is waterproof, anti-corrosion and rigid.
Two visible LED indications are on side front and another two are on top to show entry or not. Each two indications show one passage.
Arm is 120° rotors or 90°rotors for select.
It has standard relay signal, which can be integrated with any kind of third-party access control system (e.g.: RFID, Fingerprint and Biometric reader device).

Features of Daosafe Full Height Turnstile

Long-life performance, high operation dependability and fast response
The mechanism is equipped with an automatic regulated hydraulic buffer device. No noise and impact when running
Single directional or Bi-directional is selectable
Automatic reset function: turnstile arm will lock automatically within 5s (can be setting) if passenger delay to entry
Anti-tailing function: only one person passes at one time
When power is off, arms will open automatically, which is complying with fire safety requirements
LED indicator (red × means no entry; green → means entry)
Structure of trunking to contain cable tidy inside the case
Structure of ring cover on top and bottom to beautify it
Override key function: when power failure, support to control open and close by manual
Easy to install and maintain
3-year warranty support

All the details and dimensions can be customized according to your project site

Model No.	DS402FS
Brand	Daosafe
Framework Material	304 Full Stainless Steel

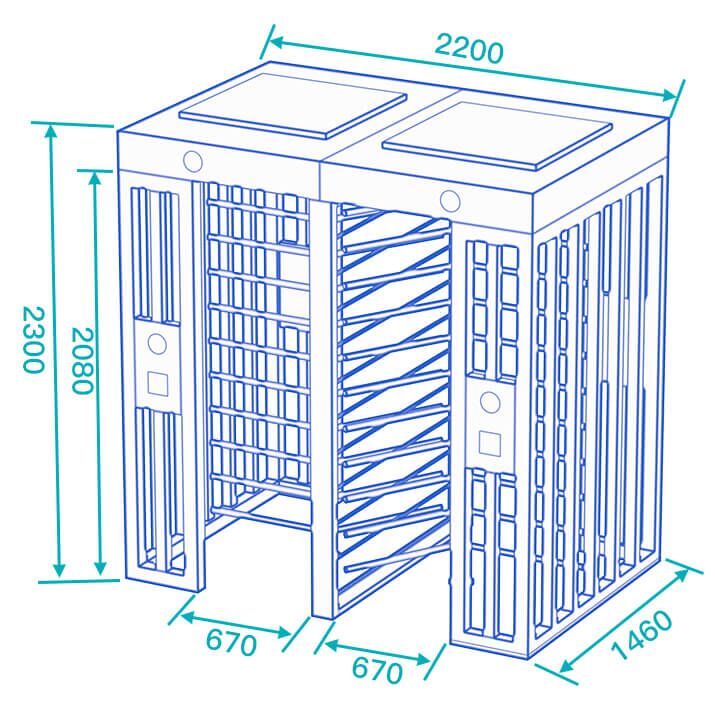

Dimension	2200 * 1460* 2300mm
Inner Height	2080mm
Weight	500kg/pcs
Passage Width	2 lanes, 670mm/lane
Arm Support	120° rotors with 3 sections or 90° rotors with 4 sections
Passing Direction	Single directional / Bi-directional
MCBF	10 million
Power Supply	AC220V/110V, 50/60Hz
Operation Voltage	24V DC
Power Consumption	40W
Operation Temperature	-15 °C - 60 °C
Operation Humidity	0 ~ 95% (No freeze)
Working Environment	Indoor / Outdoor with solid rain protection roof
Flow Rate	30 people per minute
LED Indicator	Yes
Emergency	Automatic arm open when power off
Communication	Dry contact, Relay signal, RS485
