Pedestrian Security Gate DSSP6003C
- DSSP6003C half-height pedestrian security gate is designed for individual operation or to integrate with a half-height turnstile for access control.
- The body is made of brushed stainless steel +glass, which is anti-rust, durable, and good looking.
- It features a standard relay signal for compatibility with various third-party access control systems. This setup is a common and ideal solution for managing access for package deliveries, carts, handicapped individuals, and similar needs.
- The system can well match with various models of Daosafe turnstiles and speed gates to use.
- The direction of door opening: two-way.
- Green and red LED indicator display passing status.
Features of Daosafe Pedestrian Security Gate
- Whole product is in full industrialized design, produced for high/low temperature, and dusty hazardous environment
- It has various design for optional
- The pedestrian length and height of pedestrian gate is can be customized
- The system is mainly design to enclose open space or for handicapped passing
- It is suitable for both indoor and outdoor applications
- Easy to install and maintain
- 3-year warranty support

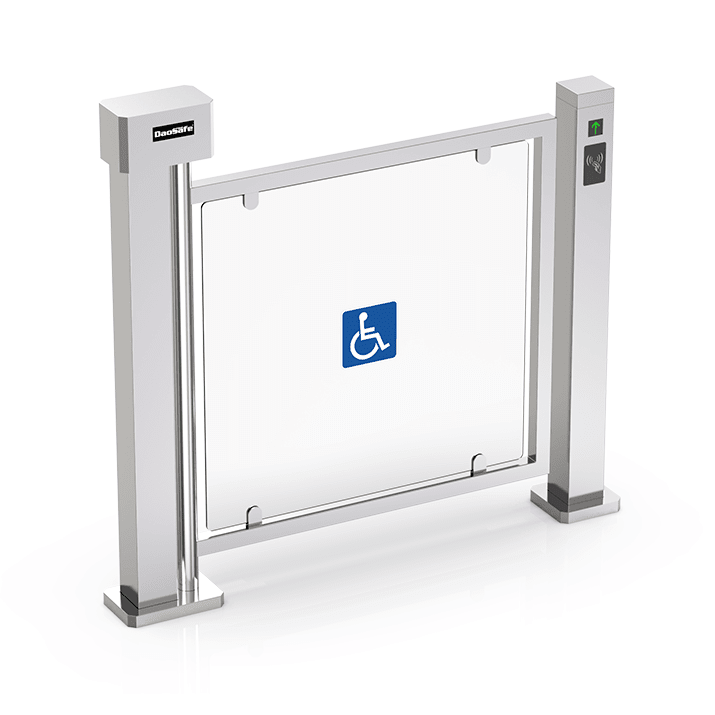

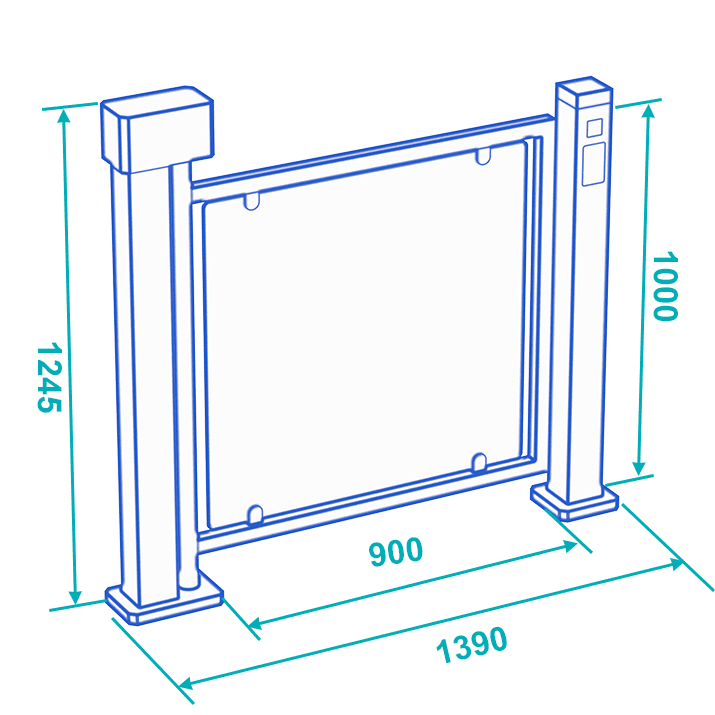

Product Details and Dimensions
All the details and dimensions can be customized according to your project site
Full 304 stainless steel

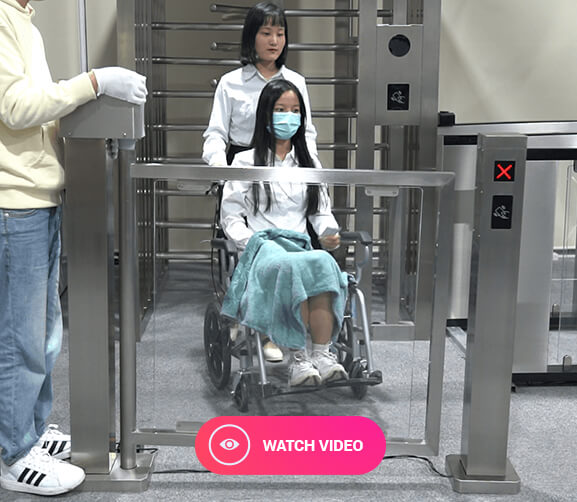

1 di 3Handicapped passing
2 di 3Access controller
3 di 3
Product Parameters
| Model No. | DSSP6003C |
|---|---|
| Brand | Daosafe |
| Type | Motor with clutch |
| Framework Material | 304 Full Stainless Steel + Plexiglas Arm |
| Direction of Door Open | Two ways |
| Dimension | 1390 * 120* 1245(mm) |
| Passage Width | 900mm |
| Weight | 35kg/pcs |
| MCBF | 10 million |
| Power Supply | AC220V/110V, 50/60Hz |
| Operation Voltage | 24V DC |
| Power Consumption | 20W |
| Operation Temperature | -15 °C - 60 °C |
| Operation Humidity | 0 ~ 95% (No freeze) |
| Working Environment | Indoor / Outdoor |
| Emergency | Automatically open when power off or fire alarm |
| LED Indicator | green → entry, red × no entry |

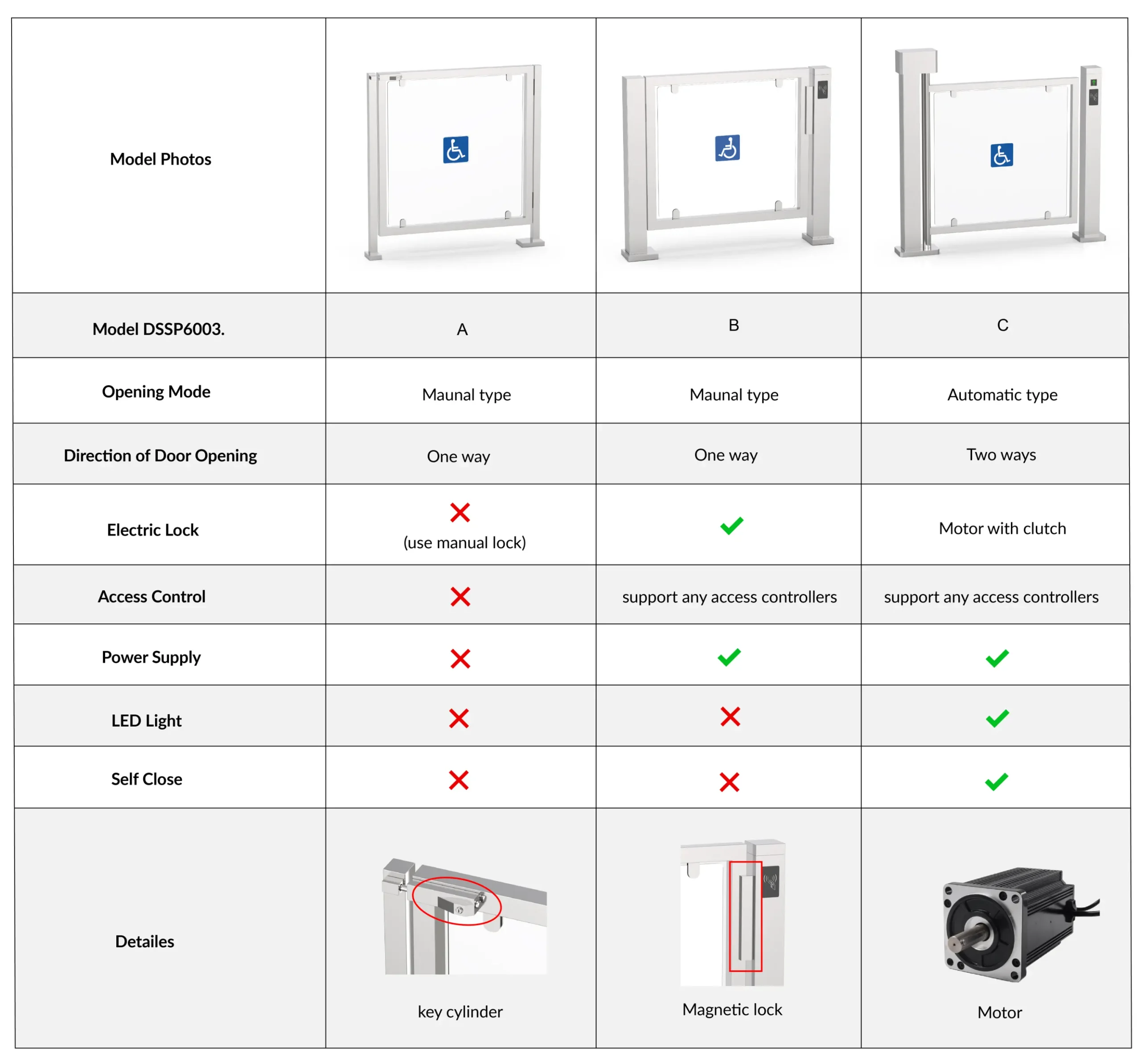

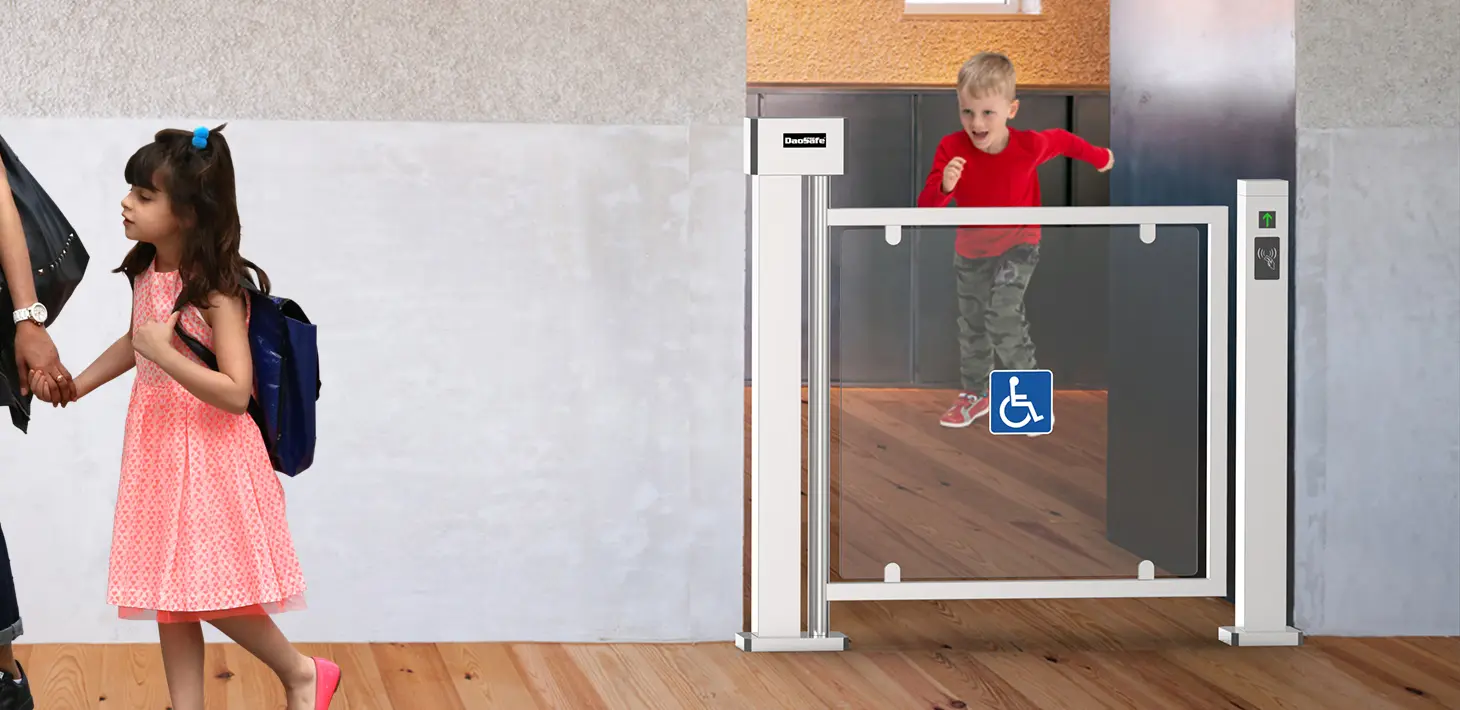

Product Comparison
Easy Installing, NO Need Any Special Electrician Skills
Fix on ground, connect to power supply, it will work
Clients Gallery
Click on images to enlarge

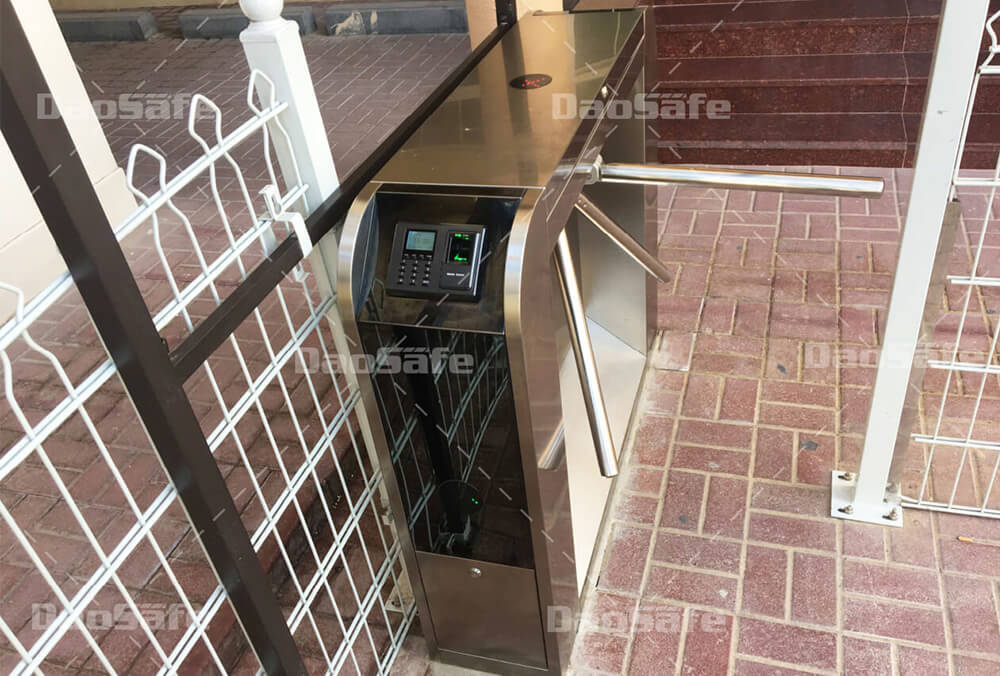

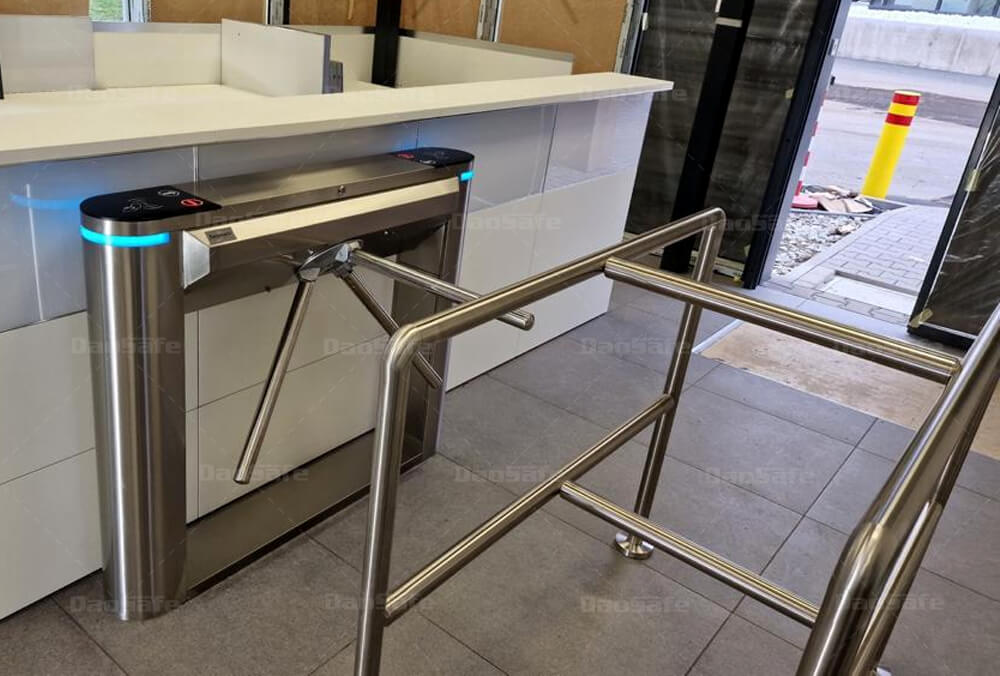

DS112 tripod turnstile in Czech Republic-2
DS112 tripod turnstile in Czech Republic-5

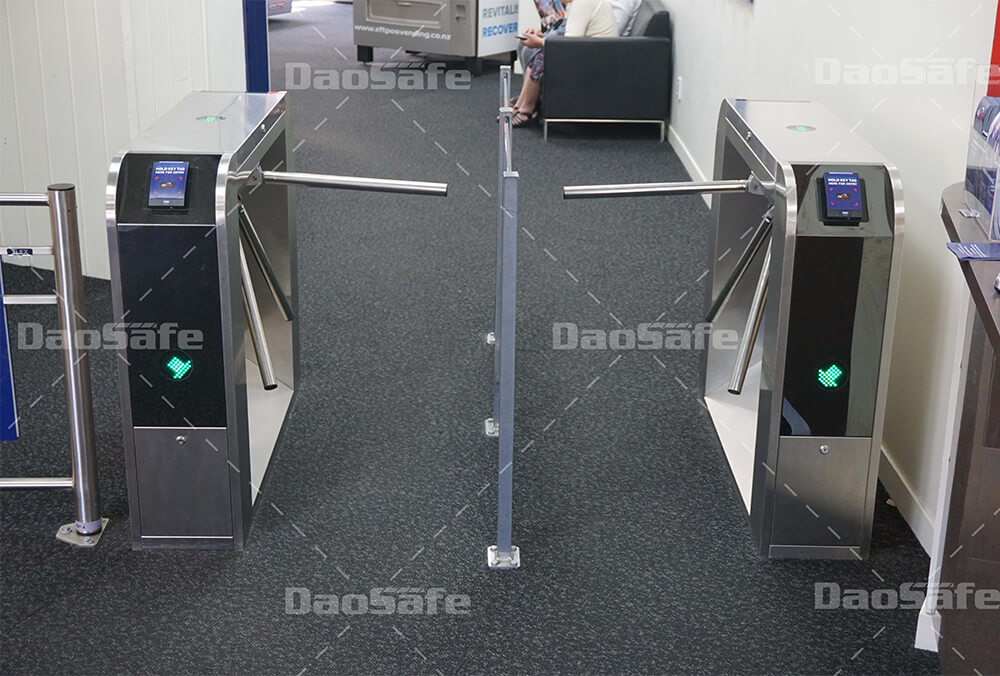

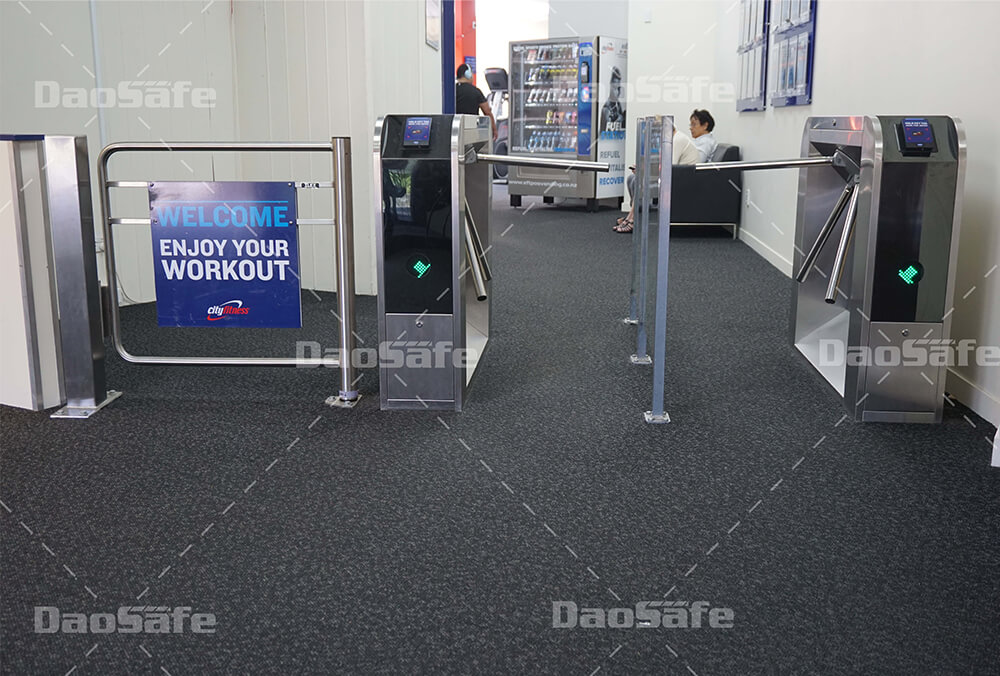

The Gym in New Zealand 2
